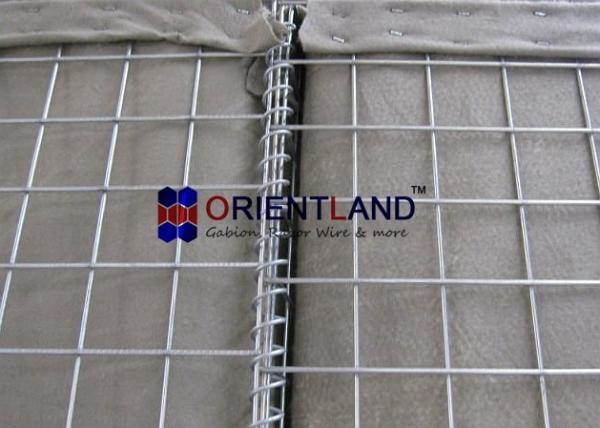

Heavy Duty Geotextile Lined Unit Earth Filled Welded Mesh Barrier

Welded Mesh Defensive barriers are strong structures which are composed of welded gabions and non-woven polypropylene
geotextile. According to different use environments, the defensive barriers can be made into standard and recoverable types for your choice.

​The Welded Mesh Barrier are mainly used for military and civilian purposes. In the military, they are mainly used as military bunkers or militaty defense. Civil use is mainly used to prevent floods.

Specifications:

Mesh Wire diameter: 3mm to 5mm.
Mesh Opening: 2" × 2", 3" × 3", 4" × 4" or custom openings.
Geotextile colors: white, gray, beige sand and army green.
Geotextile density: 200g/sqm, 250g/sqm, 300g/sqm, 350g/sqm, 400g/sqm
Helical Wire Diameter: 3mm, 4mm
Helical pitch: 1", 2"
Joint Pins Wire Diameter: 4mm
Package: Securest bastion barriers are pre-assembled and packed on pallets enclosing spiral joints.
Finish: Electric galvanized, hot dipped galvanized or Alu-zinc coating upon request.

Applications:

• Blast mitigation walls
• Ammo compounds
• Noise abatement barriers
• Sentry towers
• Guard posts, both improvised and in kit form
• Vehicle barriers
• Entry Control Points
• Cover from view
• Protection from ballistics
• Protection for aircraft (revetments)
• Protection of adjacent occupants from the accidental discharge of aircraft weapons
• Protection of living accommodations
• Provision of bomb shelters
• Asset protection

Advantages

• Secure & reliable

Once filled with soil, sand or gravel, Securest forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemyfire.

• Convenient usage

Securest bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.

• Labor saving design

Securest can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.

• Quick & easy assembly

Securest provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our Securest do ten

times the work.

Hesco Bastion Barrier Packing

Barrier Installation

1. Unpack the collapsible wire mesh container from package.
2. Unfold the barrier and connect barriers to reach the designed length
3. Fill soil, sand or gravel into the container. The common machine is front end loader.
4. Compact the content
5. Add layers if required.
