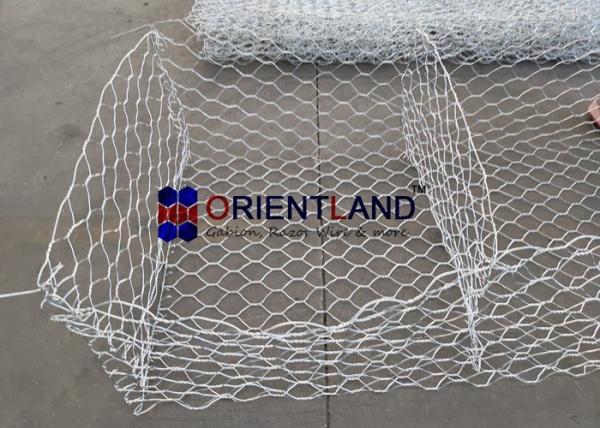

80x100mm Hole Size Woven Gabion Wire Baskets Hexagonal Wire Mesh for Soil Erosion Protection

Products Description:
GABIONS and ES consist of rectangular units, fabricated from a double-twisted hexagonal mesh. The gabion box is divided into units by means of diaphragms positioned at approximately 1m centres. Filled with stones, gabions become large, flexible and permeable elements from which a broad range of structures may be built. Gabions and es are widely used for hydraulic and geo- technical control such as retaining walls, riverbank protections, weirs, channel linings etc.

Meanwhile, we also have the gabion rock fall netting. As the name suggests, this kind of netting made out of gabion mesh finds application in preventing rocks and debris from spilling.

Gabion Sack, used in controlling water flow.

Gabion Technical Parameter:

Gabion specifications:

Installation of the Woven Gabionx Basket

Connections of the Woven Gabion Box

Different Material of the Gabion,

Galvanized wire: Low carbon steel wire,diameter 2.0mm-4.0mm,the tensile strength of the steel wire not less than 380Mpa,the surface of the steel wire are protected by the galvanized coatings, the thickness of the zinc coated can be customized.

Zinc-aluminium alloy steel wire:(Also called Galfan steel wire)this is a new popular material on the international. The corrosion resistance of this wire is 3 times of the traditional galvanized wire. The wire dia canbe 1.0mm-3.0mm, and the tensile strength not less than 1380Mpa.

PVC coated wire: Twisted gabions after coating PVC on the surface of the low carbon steel wire. The PVC coating can give great protection on the heavy-pollution environment. And the alternatively colors can make it harmonious between the gabions and the surrounding environment.

Advantages of Gabions

• Exemplary modularity and ability to stack in various sizes and shapes,
• Gabion structures are capable of resisting any types of stresses, bending, tensile and shear.
• Gabion structures can accommodate differential settlements without disturbing the structural integrity.
• The permeability characteristics of Gabion structures eliminate the problems caused in RCC structures, such as soil instability, water logged backfills/foundation etc.
• Gabion and gabion es are backed with well documented research and certifications concerning durability of the structure

Features of the Gabion

1.Easy to install: no special technology required.
2.Strong anti-scour : ability.able to withstand water flow speeds.
3.Good ductility :no structural joints.
4.High strength:with stand a wide range of deformation.

Applications / Uses of Gabions :
Gabions have been around for over a hundred years and have a wide range of applications and new ones are continually being found. We have listed below the most common applications to date, manufactured using either woven double twisted or welded square mesh.

• Control or guide river or flood.
• Retain structure.
• Protect roadway or bridge.
• Protect river bank or dam.
• Pave channel in the river.
• Be as gravity retaining wall.
• Be as highway embankments.
• Prevent rock breaking.
• Protect water and soil.
• Building construction.
• Steep hill stability.
• Building stability.
• Bridge protection.
• Erosion control.Drainage.

Orientland Wire Mesh Products Co., Ltd is a professional manufacturer and exporter of Gabion, Razor Wire, Chicken Wire Netting, located in Anping, China. Since 2008, Orientland focused on the development and production of various types wire mesh.

Our products include:Gabion, Razor Barbed Wire, Chicken Wire Netting(Hexagonal Wire Mesh), Expanded Metal, Chain Link Fence, Window Screen, Binding Wire, Stainless Steel Wire, Stainless Steel Wire Cloth, Security Mesh Fence and so on. More than 10 series, 200 types. Customized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in Construction, Civil Engineering, Hydraulic Engineering, Poultry or Livestock Breeding, Chemical Engineering, as well as more industries .

We have our own Wire Drawing workshop, Welding workshop, Mesh Weaving workshop, Punching workshop. We have our own Quality Inspetion Department, 20 Senior Technicians and 80 experienced workers to guarantee our products manufactured passing rate reach to 99%.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 100 countries and regions in the world, including: Germany, Belgium, France, Estonia, Iceland, Bulgaria, Slovenia, America, South Korea, Philippines, Myanmar, India, the United Arab Emirates, Saudi Arabia, Kenya, Nigeria and other countries, the products are subject to a great welcome and praise.

We have 10 experienced sales in our Sales Department. They can answer and resolve all your problems and even can individually tailored solutions for every customer. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world.
